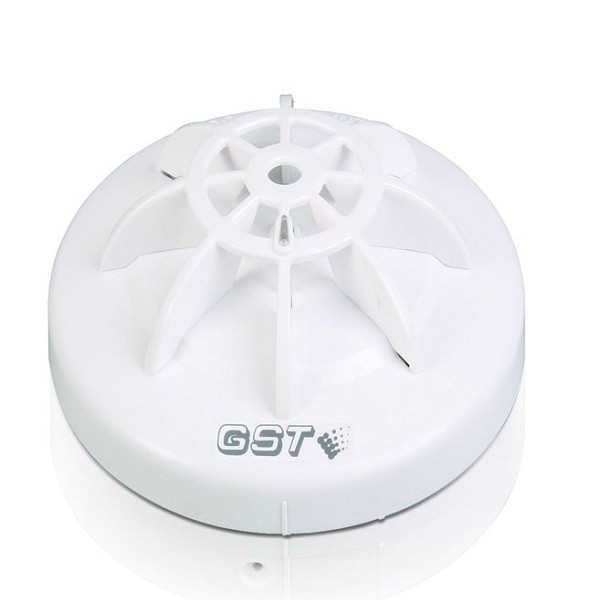

Addressable heat detector DI-9103E

DI-9103E intelligent rate of rise and fixed temperature heat detector is a new addressable fire alarm device cooperating with GST intelligent fire alarm control panels(FACP) to build a fire detection system. The detector shows the fire alarm by the LED indicator and transmits the signal to the FACP.

Feature

   ☆Electrically addressed
   ☆Magnetic test
   ☆Self-diagnostic
   ☆Reed switch testing
   ☆3 classes programmable
   ☆LED for 360° vision
   ☆ Built-in remote indicator output
   ☆Polling LED can be set to close
   ☆LPCB Approved

Technical Specifications

    ☆Standard: EN54-5
    ☆Operating Voltage: 24VDC
    ☆Operating Current:
           Standby Current: 0.6mA
           Alarm Current: 1.5mA (without remote indicator)
    ☆Operating Environment:
           Temperature: -10℃ ～+50℃
           Relative Humidity: 95%, non condensing
    ☆Detector Class: A1R, A2S, BS
    ☆Dimensions: Diameter 100mm, Height 53.3mm(with base)
