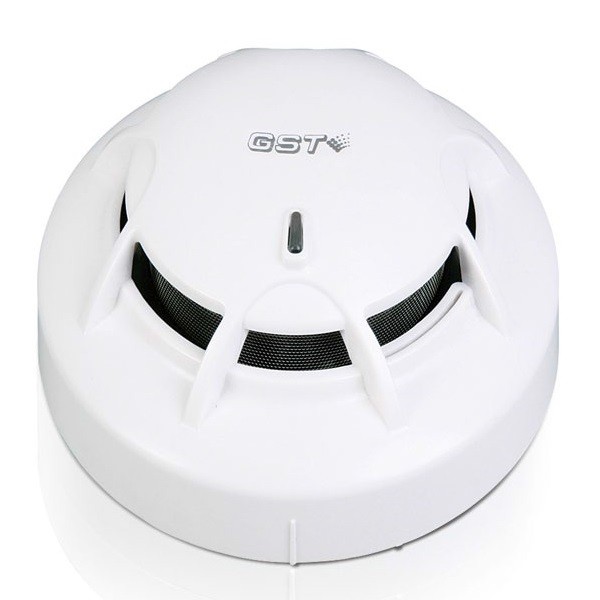

Addressable smoke detector DI-9102E

The GST DI-9102E is an intelligent addressable optical smoke detector for use with the GST range of intelligent fire alarm control panels.

Feature

   ☆ Re-settable (non-breaking glass) via a special key

   ☆ Advanced digital communication

   ☆ Electronically addressing

   ☆ Friendly installation and test

   ☆ Wiring before termination

   ☆ Surface mount, Semi-flush mount

   ☆ LPCB Approved

Technical Specifications

   ☆ Protection Rating: IP43

   ☆ Operating Voltage: 24VDC

   ☆ Operating Current:

           Standby Current≤ 0.6mA

           Alarm Current≤1.8mA

   ☆ Operating Environment:

           Temperature: -10℃ ～+55℃

           Relative Humidity: 95%, non condensing

   ☆ Application: Indoor use

   ☆ Dimensions:

              87.1mm×87.1mm×58.5mm (with back box)

              87.1mm×87.1mm×23.5mm (without back box).
