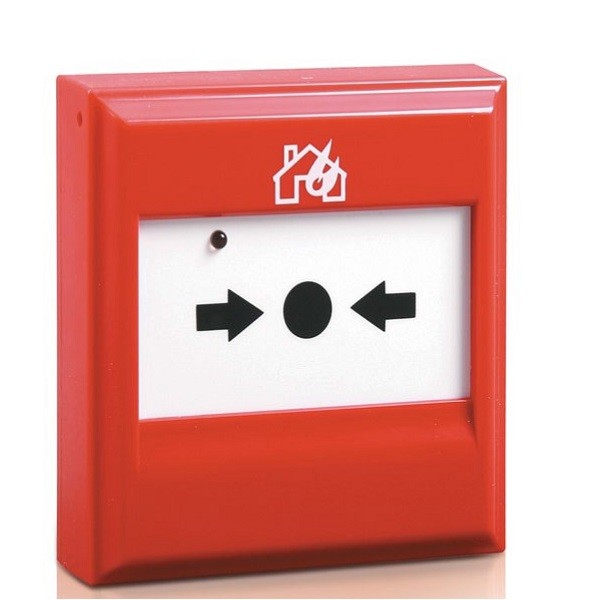

Addressable mcp DI-9204E

Connecting to the loop of the GST fire alarm system, the DI-9204E Digital Manual Call Point (MCP) is suitable for public places. When there is a fire, pressing the frangible element on this MCP can send a fire signal to the fire alarm control panel. After receiving the signal, the control panel will show the address information of the MCP and generate an alarm sound.

Feature

   ☆ Re-settable (non-breaking glass) via a special key
   ☆ Advanced digital communication
   ☆ Electronically addressing
   ☆ Friendly installation and test
   ☆ Wiring before termination
   ☆ Surface mount, Semi-flush mount
   ☆ LPCB Approved

Technical Specifications

   ☆ Protection Rating: IP43
   ☆ Operating Voltage: 24VDC
   ☆ Operating Current:
           Standby Current≤ 0.6mA
           Alarm Current≤1.8mA
   ☆ Operating Environment:
           Temperature: -10℃ ～+55℃
           Relative Humidity: 95%, non condensing
   ☆ Application: Indoor use
   ☆ Dimensions:
              87.1mm×87.1mm×58.5mm (with back box)
              87.1mm×87.1mm×23.5mm (without back box)
