Asenware Cylinder rack FM200 AW-FMR200
(0 Reviews)
In stock
Estimate Shipping Time:
1 days
Sold By:
Inhouse product
Inhouse product
Price:
NGN78,750.00
/950
Share:
Sold By
Secureshop
(0 customer reviews)
Top Selling Products
-
Addressable strobe sounder base AW-D120
NGN40,250.00 -
ASENWARE CONV PANEL AW-CFP2166-2 2 ZONE PANEL
NGN158,550.00 -
ASENWARE CONV PANEL AW-CFP2166-4 4 ZONE PANEL
NGN188,510.00 -
15-30W water proof speaker AW-SP04
NGN61,250.00 -
20-30W water proof speaker AW-SP05
NGN87,500.00 -
3-6W Small ceiling speaker AW-SP01
NGN21,000.00
Asenware FM-200 Fire extinguishing systems are designed for total flooding
to protect high-value assets and normally occupied areas where it is not suitable
to use CO2 or other harmful extinguishing agent. Main features of FM-200
extinguishment are :
to protect high-value assets and normally occupied areas where it is not suitable
to use CO2 or other harmful extinguishing agent. Main features of FM-200
extinguishment are :
• Colorless and non-toxic gas, suitable for the normally occupied areas, where there
is any chance of presence of human presence, it is dangerous to use CO2. FM-200
is a hydrocarbon chemical agent, that contains no toxic compound and it does
not produce any harmful compound after reacting with any product of combustion.
is any chance of presence of human presence, it is dangerous to use CO2. FM-200
is a hydrocarbon chemical agent, that contains no toxic compound and it does
not produce any harmful compound after reacting with any product of combustion.
• Perfectly suited to protect high-value assets areas like telecommunication rooms,
control rooms, etc. These areas are sully occupied and contain high assents, water
is not suitable to use as it may damage the electrical equipment and even a little fire
can shut down the facility and damage the business. FM-200 is one of the best solutions
that extinguishes the fire through chemical reactions and cooling effect and leaves no
residue after extinguishment.
control rooms, etc. These areas are sully occupied and contain high assents, water
is not suitable to use as it may damage the electrical equipment and even a little fire
can shut down the facility and damage the business. FM-200 is one of the best solutions
that extinguishes the fire through chemical reactions and cooling effect and leaves no
residue after extinguishment.
• Electrically non-conductive and contains no particle or residue, which makes it
suitable for use in electrical and control rooms.
suitable for use in electrical and control rooms.
• Suitable for Class A, Class B, and Class C fire. Asenware FM-200 System extinguish
the fire which is categorized into Class A, B, and C.
the fire which is categorized into Class A, B, and C.
• Extinguish fires rapidly: As discharge time is less than 10 seconds, it mixes in the
environment and make free radicals react with fire products and extinguish fire quickly.
environment and make free radicals react with fire products and extinguish fire quickly.
Asenware FM-200 Extinguishing System has two types of system.
Pre-engineered and engineered system.
1. Pre-Engineered or Cabinet System: It is a total flooding system, and it is designed
based on a pre-determined maximum volume of hazard. and It can be easily moved and
adjusted at any location in the hazard area.
based on a pre-determined maximum volume of hazard. and It can be easily moved and
adjusted at any location in the hazard area.

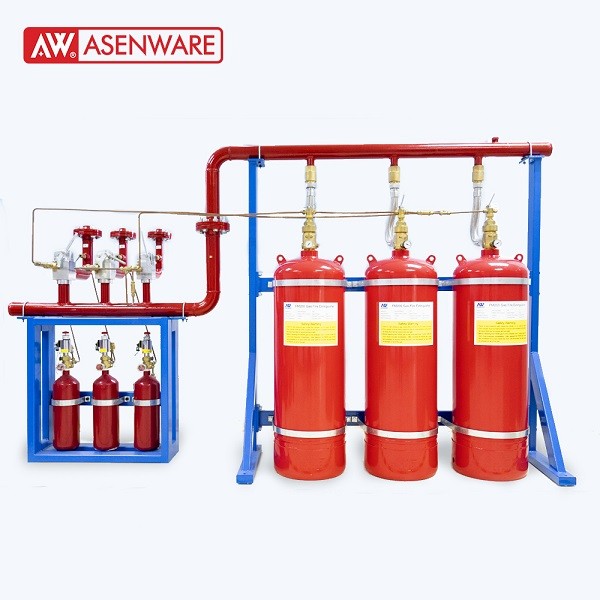

2. Engineered System or Manifold System: In manifold system, a suitable size of
manifold which is calculated based on the agent and volume, all tanks are connected
to the manifold and then through piping distribution agent is discharged through nozzles
in the specific area.
manifold which is calculated based on the agent and volume, all tanks are connected
to the manifold and then through piping distribution agent is discharged through nozzles
in the specific area.
Using selector valves, multiple hazard areas can be protected using a single
cylinder bank.
cylinder bank.
MODES OF OPERATION
There are three modes of operation as listed below
• Automatic Operation
• Remote Manual Operation
• Local Manual Operation
1. Automatic Operation
1. Automatic Operation
When the control panel operates the solenoid valve upon receiving a signal from detectors,
the solenoid will actuate the cartridge after a certain delay time ( if given ) and gas will discharge
into the hazard area.
the solenoid will actuate the cartridge after a certain delay time ( if given ) and gas will discharge
into the hazard area.
* With Asenware Gas Release Control Panel: Normally, the panel remains in the ‘Auto’ position.
Upon receiving the signal from the detectors, the panel immediately released the pre-discharge alarm
and turned off the HVAC or dampers if any. And then release the gas after a pre-determined
delay period.
Upon receiving the signal from the detectors, the panel immediately released the pre-discharge alarm
and turned off the HVAC or dampers if any. And then release the gas after a pre-determined
delay period.
2. Remote Manual Operation
When the operation is performed by remote pull station, an appropriate pull station is
operated after detecting fire in the specific hazard area.
operated after detecting fire in the specific hazard area.
With Asenware Gas Release Control Panel: Asenware Gas Release panel additionally
provides manual operation from the panel, one must put the key to the ‘manual’ position. After
pushing the manual release located on the panel, gas will be released as operation
described above.
pushing the manual release located on the panel, gas will be released as operation
described above.
* All instructions for operation must be inscribed near the pull station.
3. Local Manual Operation
In case of failure of automatic actuation, the Asenware FM-200 system has the provision
to operate it manually. In this scenario, one must proceed to the appropriate FM-200
cylinders arrangements for specific hazard areas. Remove the safety pull pin from the
pilot cylinder as instructed on the nameplate. And pull the lever and the gas will release
immediately.
to operate it manually. In this scenario, one must proceed to the appropriate FM-200
cylinders arrangements for specific hazard areas. Remove the safety pull pin from the
pilot cylinder as instructed on the nameplate. And pull the lever and the gas will release
immediately.
