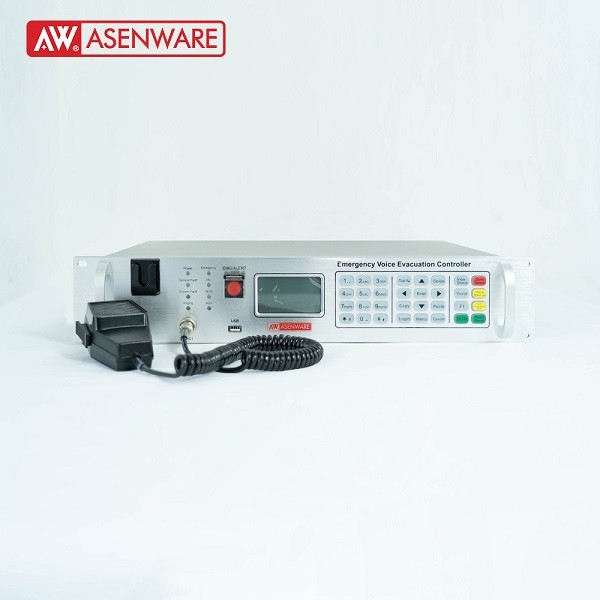

Asenware Emergency Voice Evacuation Controller AW-EVC100

There is an emergency evacuation button that can be manually operated to activate the fire alarm， displaying alarm information in editable language.
Equipped with an EMC Microphone which issued to evacuate people When it is in an emergency
3.2-inch LCD screen and silicon buttons for visual operation
Provided with various source inputs including 2 AUX and 2 MIC
Supports playback of audio in MP3, WAV format with USB flash disk and Bluetooth
There are 20 zones of fire detection input, which are activated one by one with the 20 zones of speaker zones when the fire alarm is triggered, and when the fire disappears it will automatically recover.
Each broadcast zone needs to connect to a constant voltage loudspeaker with a 2, 3 wire connection.
Autonomously control the opening and closing of the broadcast zone
120 fire zones can be linked to the broadcast zone via CAN in the Fire Alarm Control Panel ( like FP128, and FP200 ). If the linkage is preset in the EVC100, the evacuation audio will be played when EVC100 receives the fire signal from the Fire Alarm Control Panel.
Each broadcast zone can be set with an individual timer to delay playing the evacuation audio when receiving a fire signal
Support a maximum of 60 broadcast zones by connecting to EV603
2 loops of paging input interfaces can connect two paging devices and broadcast notification and audio through Paging at a long distance.
Support AC power supply and 24V battery power supply can automatically identify and switch, AC power supply priority
1 monitoring speaker, which can monitor the audio of the input audio source
Built-in SD card, used to store emergency alarm audio files ( MP3, WAV format)
